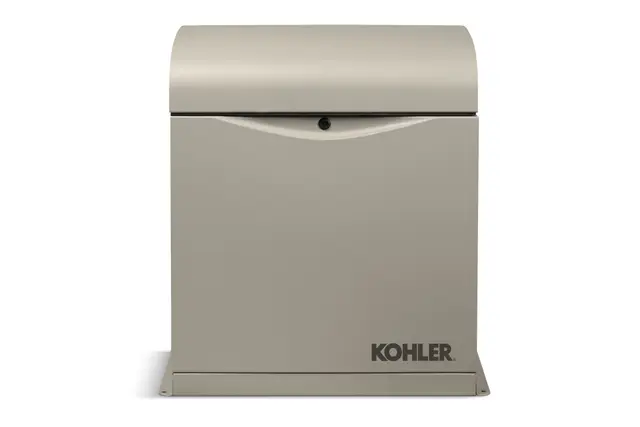

Kohler 12kW 12RESV Residential Stationary Standby Generator Natural Gas LP Vapor Propane



$2,972.00

THE POWER YOU NEED

  • PowerBoostâ„¢ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Extraordinary peak motor-starting capacity: 12RESV at 16.8kVA at 240V
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
  • Powered by reliable KOHLER Series 7000 V-twin engine with efficient OHV design. operation speed is 3600 rpm (the standard for air-cooled generators)
  • Compatible with Programmable Interface Module (PIM) and RXT, RDT and RSB Automatic Transfer Switches
  • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

THE CONVENIENCES YOU EXPECT

  • RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
  • Accepts natural gas fuel pressure as low as 3.5 inches
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Meets 181 mph wind rating
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.

*Based on generator and load size.

Description

Rated kW LP 12 kW
Rated kW NG 11 kW
Amps LP 50.0 amps
Amps NG 45.8 amps
Peak Motor Starting kVA @240 V 20.3 kVa
Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement 725 cm3 (44 cu. in.)
Horsepower NG 18 HP, LP 21.4 HP
Enclosure Material Steel
Sound Output During Weekly Exercise 67 dB(A)
Sound Output During Full-speed Operation 71 dB(A)
Response Time 10 seconds
Warranty Premium five-year limited warranty
Country of Origin US
Certifications/Listings EPA|CSA|UL 2200|cUL
Automatic Transfer Switch Included No
Remote Monitoring Available Included
Off Grid / Utility Backup Utility Backup
Weight 433 lbs.
Alternator Type 2-Pole, Rotating Field
Fuel Consumption on NG at 50% load? 128 cfh
Fuel Consumption on LP at 50% load? 57 cfh
Controller RDC2 Digital Controller
Cylinder Arrangement V-2
Dimensions 777mm x 712mm x 824mm (30.6 in. x 28 in. x 32.4 in.)
Engine Manufacturer/Description KOHLER
Engine Model KT725
Engine/Alternator RPM 3600
Fuel Type LPG|Natural Gas
Frequency 60 Hz
Phase Single Phase
Voltage @ 60 Hz 120/240
Digital Voltage Regulation ±1.0%
Built in Mounting Pad Yes



Additional information

Weight 435 lbs
