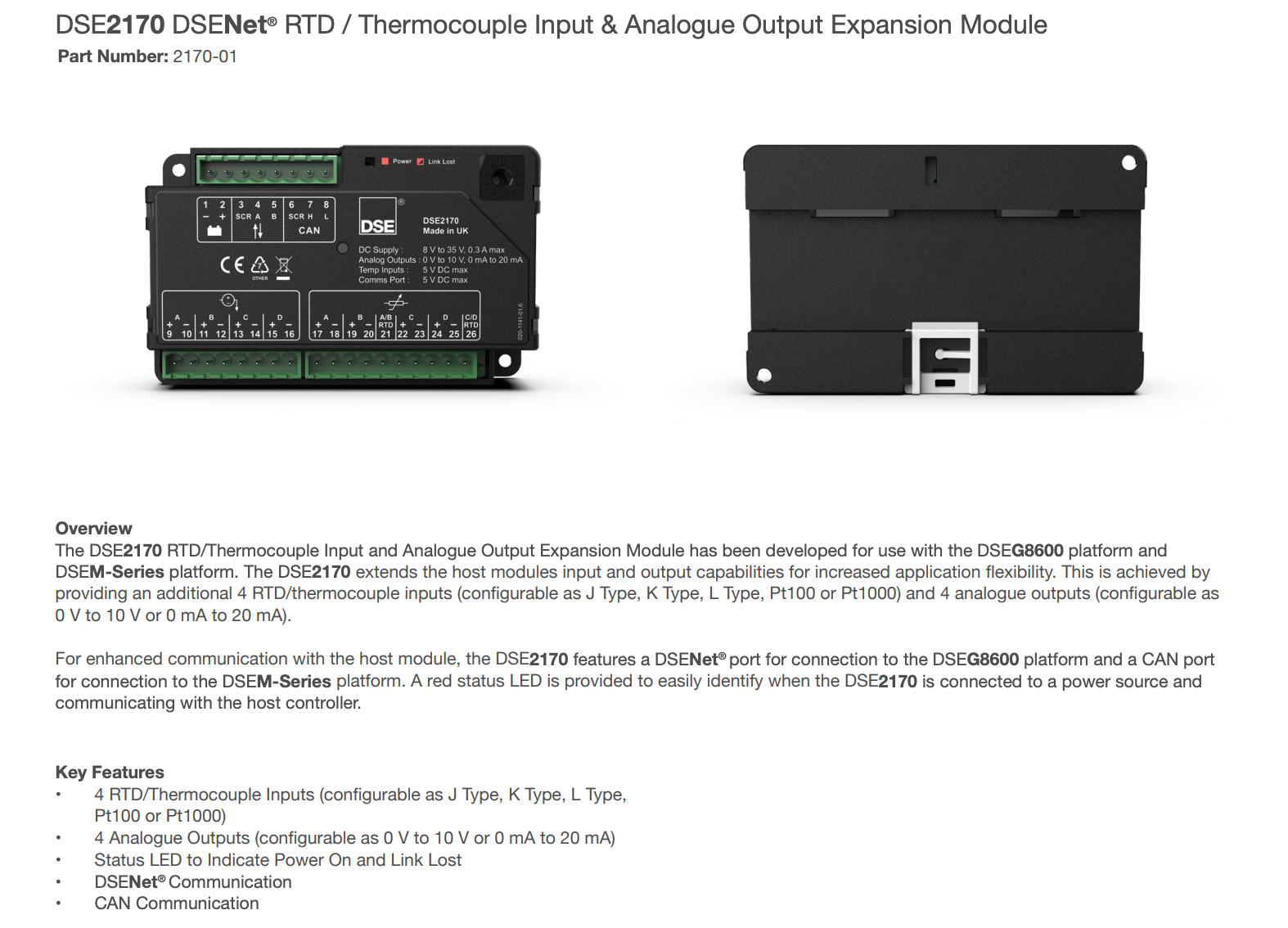

DSE 2170 Expansion Module For Sale
The DSE2170 RTD/Thermocouple Input & Analog Output Expansion Module is designed to extend the input/output capabilities of DSEG8600 and DSEM-Series platforms, delivering precise temperature sensing and analog output control for advanced generator applications.
This module provides 4 configurable RTD/thermocouple inputs—supporting J Type, K Type, L Type, Pt100, and Pt1000 sensors—and 4 analog outputs, selectable between 0–10V or 0–20mA ranges, offering exceptional flexibility for system customization and monitoring.
Built for seamless communication, the DSE2170 includes a DSENet® port for integration with the DSEG8600 and a CAN port for DSEM-Series connections. A status LED allows quick verification of power and data link activity.
Available now at Power Systems Plus, your Oregon-based expert for generator control solutions and Deep Sea Electronics parts.
Key Features
-
4 RTD/thermocouple inputs: J, K, L, Pt100, or Pt1000
-
4 analog outputs: configurable as 0–10V or 0–20mA
-
DSENet® and CAN ports for seamless system integration
-
Status LED for power and communication monitoring
-
Compact and durable design: 120 x 75 x 31.5 mm (4.72” x 2.95” x 1.24”)
The DSE 2170 is only compatible with the G8600 controller. Message us for more information.
