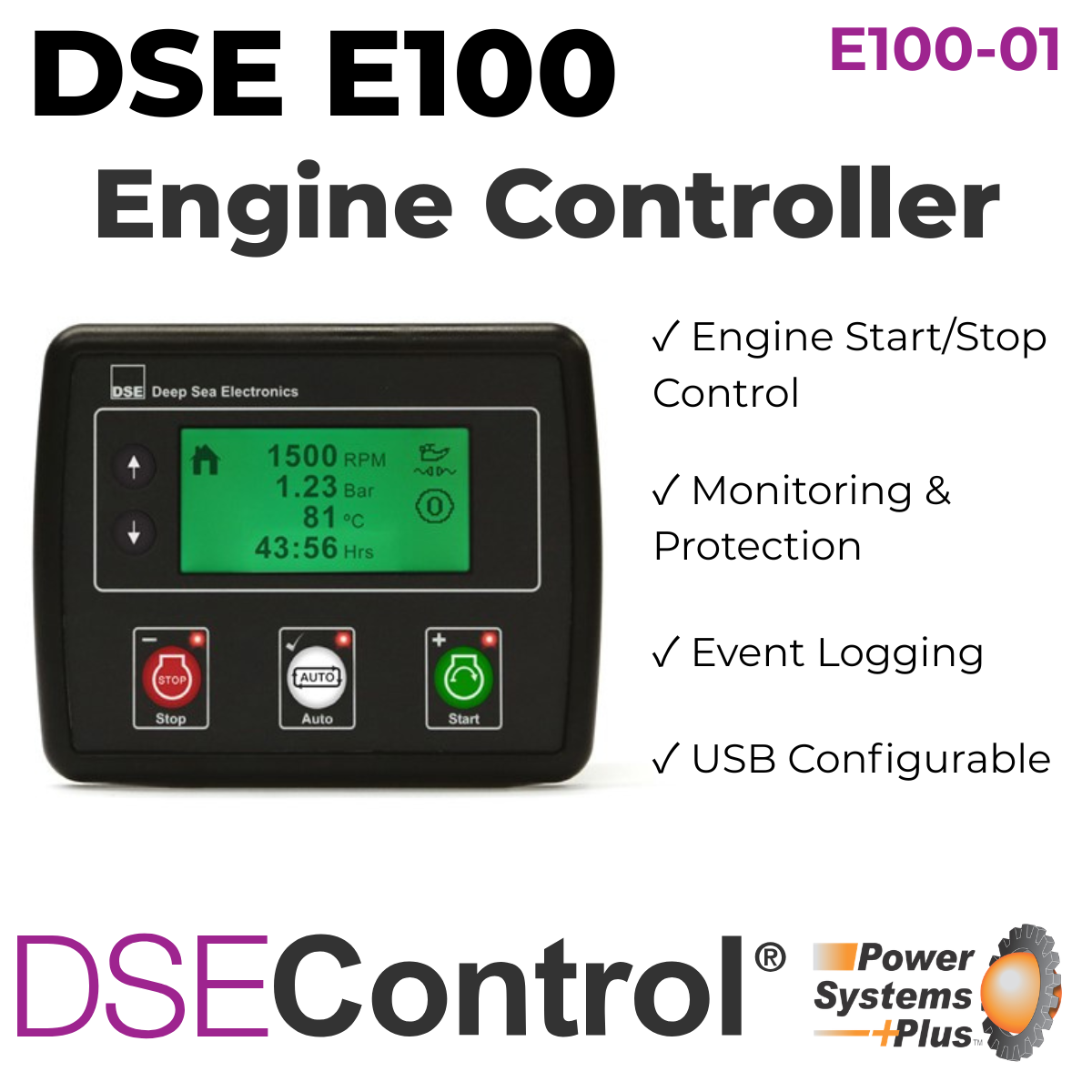

DSE E100 Engine Only Control Module For Sale

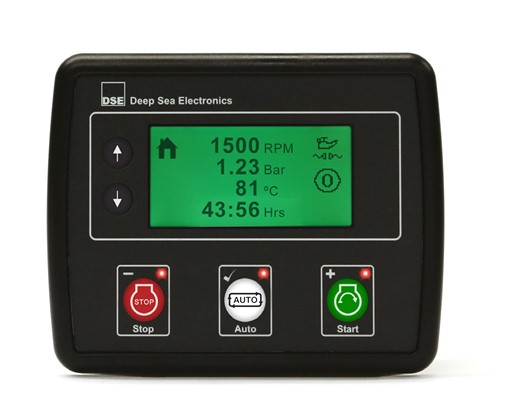

Deep Sea Electronics DSEE100 Engine Only Control Module DSEE 100 #E100-01

This item is currently in-stock!

The E100 engine only control module is engineered to offer versatile engine control coupled with integrated monitoring and protection features. With full configurability, it caters to a diverse array of applications such as engine-driven pumps and compressors, ensuring optimal performance and safety across various settings.

Order your DSE E100 engine only control module!

DC SUPPLY

CONTINUOUS VOTLAGE RATING

8 V to 35 V continuous

CRANKING DROPUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.

MAXIMUM OPERATING CURRENT

85 mA at 12 V, 96 mA at 24 V

MAXIMUM STANDBY CURRENT

51 mA at 12 V, 47 mA at 24 V

MAXIMUM SLEEP CURRENT

35 mA at 12 V, 32 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

INPUTS

DIGITAL INPUTS A to D

Negative switching

ANALOGUE INPUTS A to C

Configurable as:

Negative switching digital input

Resistive

OUTPUTS

DC OUTPUT A (FUEL) & B (START)

10 A short-term

5 A continuous at supply voltage

VOLT-FREE OUTPUTS C & D

2 A DC at supply voltage

AUXILIARY OUTPUTS C, D, E & F

2 A DC at supply voltage

PULSE PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

5 Hz to 10,000 Hz
