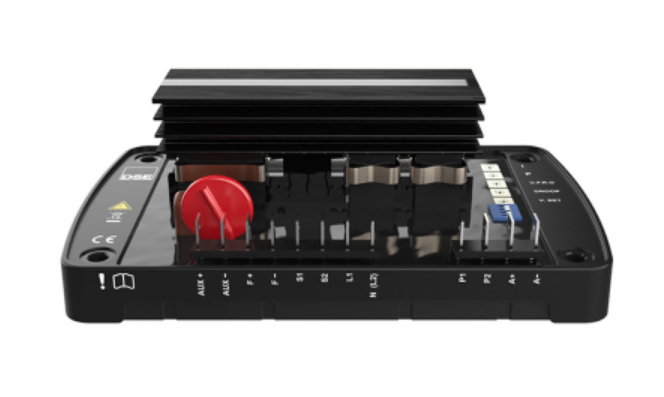

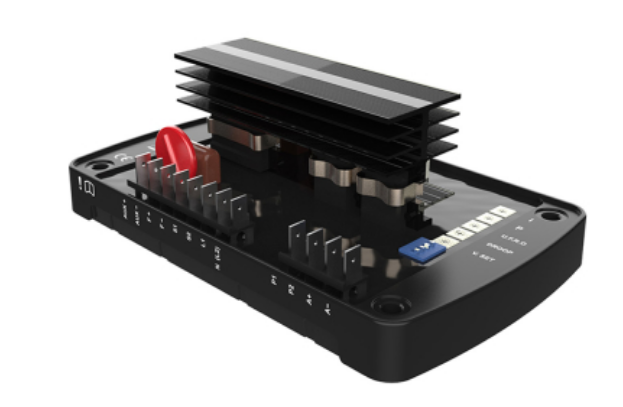

DSEA106 MKII Digital Automatic Voltage Regulator For Sale in Portland, Oregon

The DSEA106 MKII Digital Automatic Voltage Regulator (AVR) takes the proven performance of the original DSEA106 and adds advanced features to enhance reliability and versatility. Designed to regulate the output voltage of AC alternators, it draws power from either a stator auxiliary winding or a shunt system, ensuring seamless operation.

Unlike traditional analogue designs, the DSEA106 MKII offers superior stability, providing smooth, consistent, and regulated AC voltage that remains unaffected by fluctuating electrical loads.

Order the DSEA106 MKII today and experience unmatched voltage stability for your generator. With quick shipping and reliable performance, take control of your power systems now!

Please Note: The DSE815 interface is required for programming.

SPECIFICATIONS

Power Supply

• Voltage Range: 100 V AC to 300 V AC (Phase to Neutral/Phase)

• Frequency Range: 40 Hz to 180 Hz

Alternator Output Sensing

• Voltage Range: 15 V AC to 600 V AC (Phase to Neutral/Phase)

• Frequency Range: 40 Hz to 65 Hz

Excitation Output

• Excitator Field Winding Impedance: 5 Ω to 50 Ω

• Continuous Voltage Rating: 0 V DC to 100 V DC

• Continuous Current Rating: 0 A DC to 7 A DC

• Maximum Current Rating: 15 A DC for 10 seconds

Quadrature Droop CT

• Maximum Secondary Current: 5 A AC

• Burden: 0.25 VA

• Accuracy: 1%

Remote Voltage Adjustment

• Potentiometer: 5 kΩ

• Voltage Input: -10 V DC to 10 V DC
