DSE9470 MKII Intelligent Battery Charger For Sale in Portland, OR

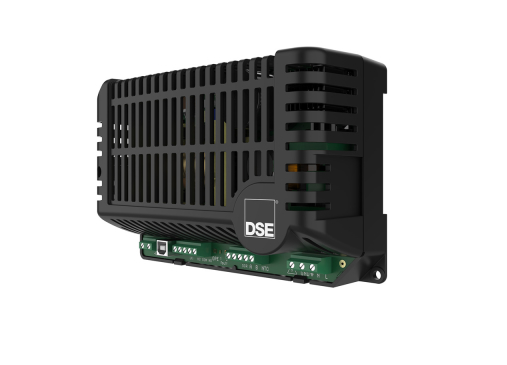

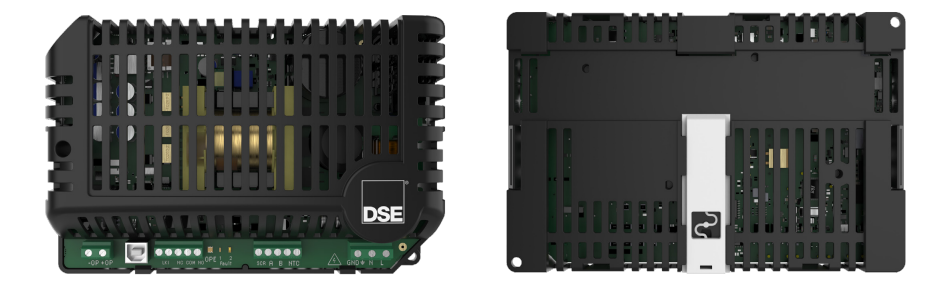

The DSE9470 MKII stands as a UL recognized intelligent switch-mode battery charger, offering programmability for various charging curves, thus optimizing battery longevity. Configuration is facilitated through the DSE Configuration Suite Software. This versatile charger can be mounted on DIN rail or chassis, featuring three integrated LEDs for real-time status updates and fault indication. It remains operational during both cranking and running, accommodating multiple AC voltage inputs seamlessly.

Keep your batteries running efficiently when you charge them with the DSE9470 MKII intelligent battery charger for sale! Don’t wait for battery failures. Order a DSE 9470 MKII battery charger today!

Key Features

• Flexible charging profiles: Fully configurable two, three, or four-stage charging with adjustable voltage and current limits to suit a wide range of battery chemistries.

• Boost and storage functions: Automatic and manual boost and storage charge options improve battery performance and longevity.

• Advanced technology: Digital microprocessor with switched-mode power supply delivers high efficiency, low ripple, and excellent line regulation.

• Smart monitoring and protection: Periodic automatic battery detection, deep sleep mode to reduce power drain, and PIN protection to prevent configuration errors.

• Durable operation: Designed for permanent connection to battery and AC supply, operating reliably even during engine cranking or high-load conditions.

• Visual and remote feedback: Three multi-colour LEDs for status/fault indication, PC configuration via DSE Configuration Suite, and integrated DSENet®/RS485 for Modbus RTU or expansion module integration.

• Power supply mode & soft start: Can operate as a power supply and features soft start to reduce inrush current during charging.

Specifications

AC Supply

• Minimum Supply Voltage: 90 VAC with charge output de-rate, 110 VAC without de-rate

• Maximum Supply Voltage: 305 VAC

• UL Voltage Approval (USA Only, 9470-01): 100 – 305 VAC

• USA & Canada (9470-A4): 110 – 150 VAC

• Frequency Range: 48 Hz – 64 Hz

• Maximum Operating Current: 4.0 AAC at 110 VAC, 2.3 AAC at 230 VAC

• Typical Standby Current (DC charge output off): 0.05 AAC, regardless of supply voltage

• Efficiency: Greater than 89%

Charge Output

• Voltage Range:

  • Configured as 12 V: 12 VDC – 15.5 VDC

  • Configured as 24 V: 24 VDC – 31 VDC

• Voltage Ripple and Noise: Less than 1% of configured boost voltage

• Voltage Load Regulation: 2%

• Voltage Line Regulation: Less than 0.01% of requested charge output voltage

• Current Range:

  • 1 ADC – 10 ADC with maximum charge output de-rate

  • 0 ADC – 10 ADC without charge output de-rate

• Maximum Current Limit: 7.5 ADC – 15 ADC

• Current Limit Accuracy: ±10% of configured maximum current limit

Digital Input

• Number: 1

• Type: Contact between terminals

• Closed Voltage Threshold: < 2.1 VDC

• Open Voltage Threshold: > 6.6 VDC

Temperature Sensor Input

• Number: 1

• Type: PT1000

Charger Fail Output

• Number: 1

• Type: Changeover volt-free contact

Keep your batteries performing at their best. Order your DSE9470 MKII battery charger today from Power Systems Plus in Oregon!
