DSE 9150 Compact Battery Charger For Sale in Oregon

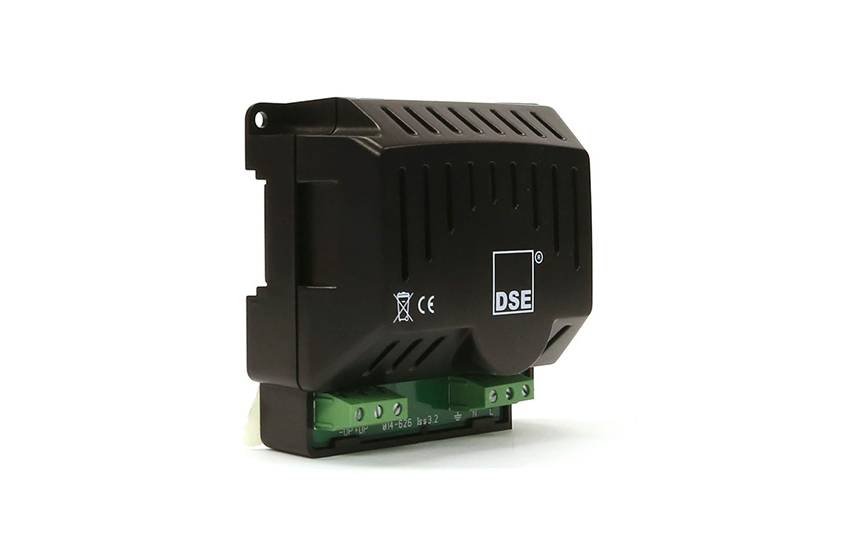

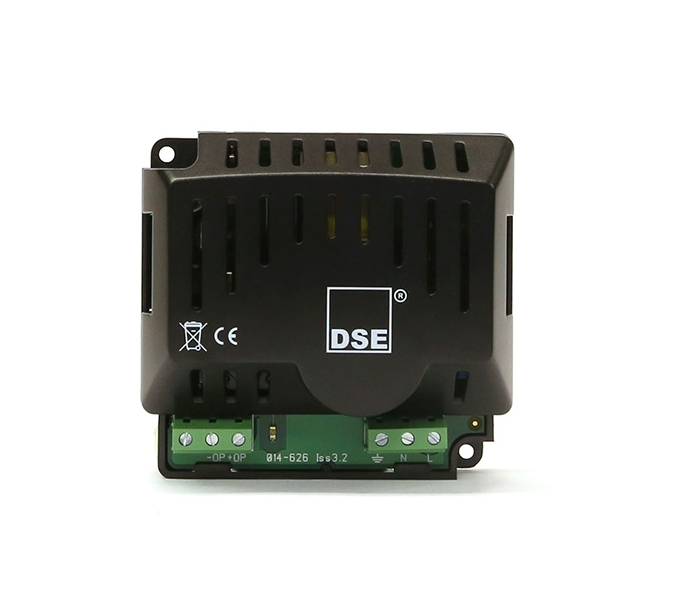

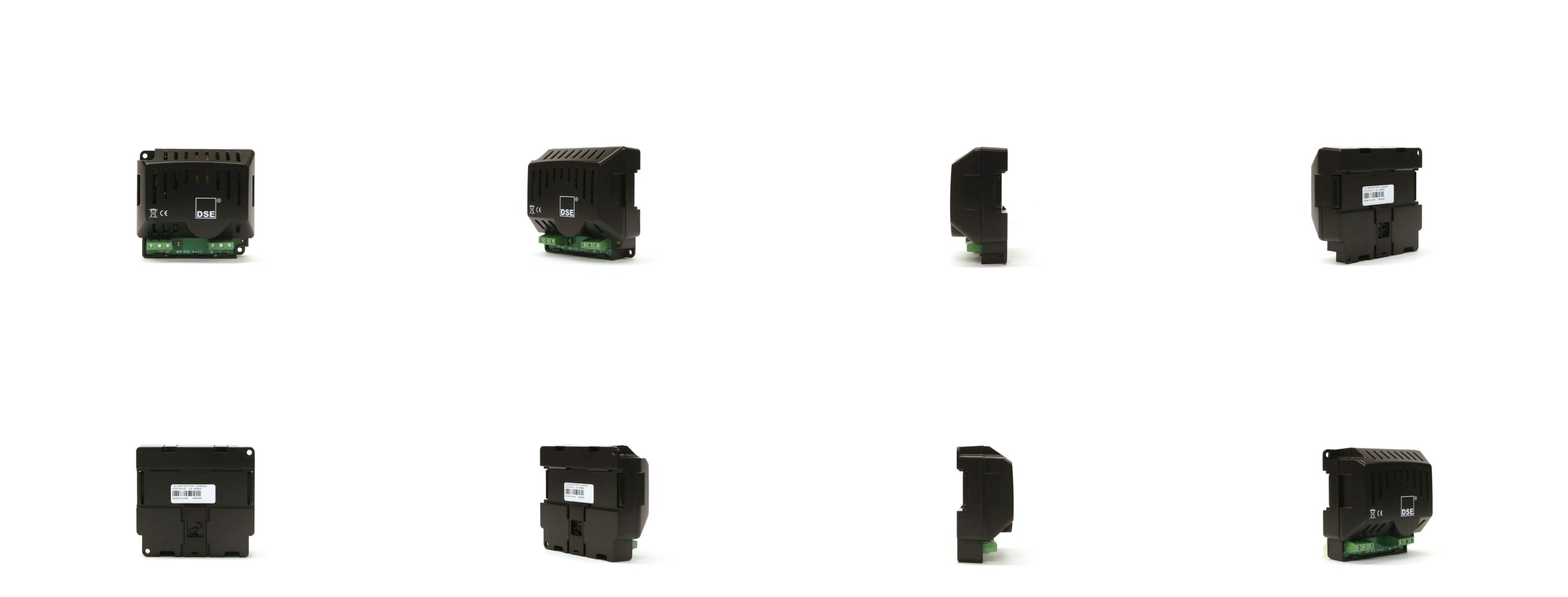

The DSE9150 12 Volt 3 Amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections. Order your DSE9150 battery charger from Power Systems Plus!
OVERALL SIZE
108 mm x 101 mm x 49 mm (4.2” x 4.0” x 1.9”)
WEIGHT
0.16kg
ADVANCED FEATURES
Multi-Stage Charging
• Constant current- maximum
current available during charge
recovery phase
• Constant voltage
• Chargers automatically return to
float mode when charging is
complete
Low Output Ripple
• Makes the chargers ideal for all
battery types
Full Protection
• Reverse polarity protection,
short circuit protection and
current limiting
• Automatic recovery after the
removal of fault conditions
Boost Mode
• Boosts and equalises cell
charge improving battery
performance and life
• Simple boost connection using
on-board terminals
Power Save Mode
• Once the battery is fully
charged the chargers switch to
Eco-Power to save energy
KEY BENEFITS
• Suitable for a wide range of
battery types
• No moving parts for longer
battery charger life
• Switched mode design
• Minimum 80% efficiency
throughout full operating
range
Paralleling Feature
• Multiple modules can be linked
together to provide larger current
output
AC Supply
-
Frequency Range: 48 Hz to 64 Hz
-
Voltage Range:
-
DSE9150: 90 V – 265 V (L–N)
-
DC Output
-
DSE9150: 3 A DC, 12 V DC at 13.7 V DC
-
Ripple & Noise: <1%
-
Efficiency: >80%
-
Regulation:
-
Line: <0.001% Vo
-
Load: 1% Vo
-
Protections
-
Short Circuit
-
Over Voltage
-
Over Current
-
Reverse Polarity
Dimensions & Weight
-
DSE9150: 108 mm × 101 mm × 49 mm (4.2” × 4” × 1.9”), 0.16 kg
Temperature Range
-
Operating: -30 °C to +55 °C (-22 °F to +122 °F)
-
Storage: -40 °C to +85 °C (-40 °F to +185 °F)
