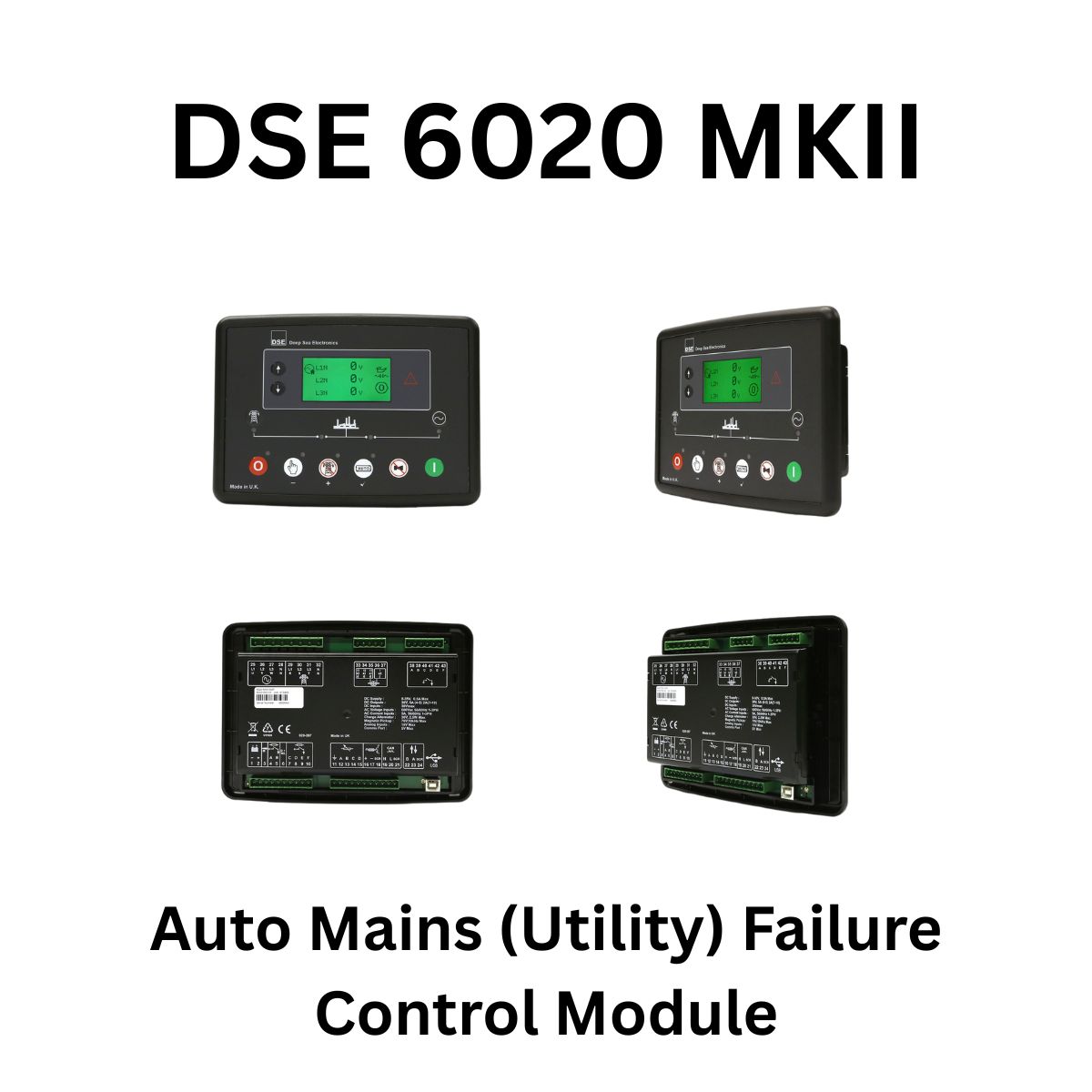

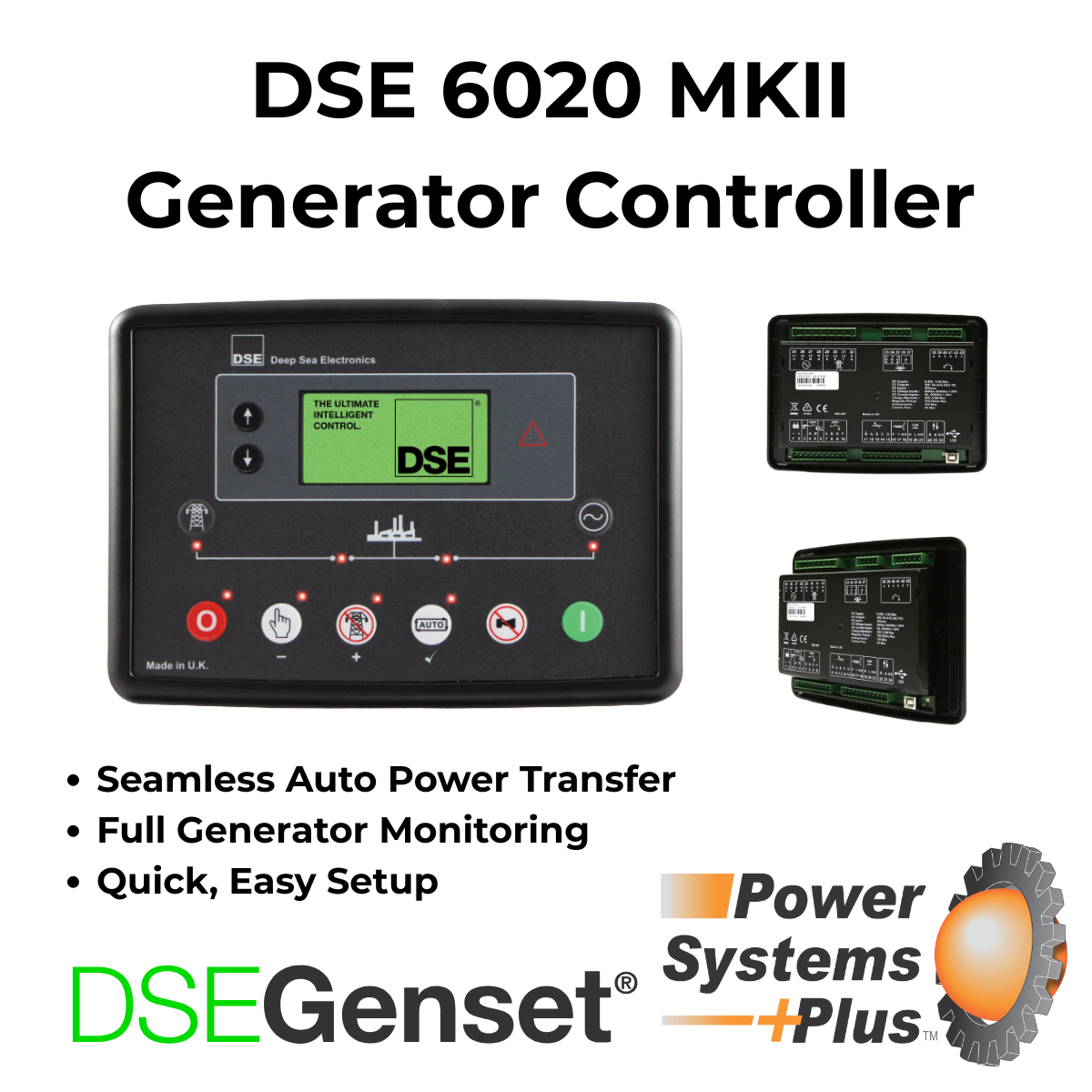

DSE 6020 MKII Auto Mains Utility Control Module 6020-03
The DSE 6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.
OVERALL SIZE
216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)
PANEL CUTOUT SIZE
184 mm x 137 mm (7.2″ x 5.3″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.48kg
Key Features and Benefits:
- Support for 0-10 V & 4-20mA oil pressure senders.
- Provides flexibility for use with multiple sensors and engine types.
- Large back-lit icon LCD display.
- Displays information to the operator in a clear and concise format.
- Heated display option.
- Ensures the display continues to operate in extreme cold weather conditions.
- 3-phase generator sensing.
- Provides true generator sensing.
- 3-phase generator and mains (utility) sensing.
- Provides true generator and mains (utility) sensing.
- Breaker control buttons on front fascia.
- Instant breaker control when working with a control module.
- Generator & load power monitoring (kW, kV A, kV Ar, pf).
- Provides clear accurate power measurement information.
- Generator overload protection (kW).
- Provides clear and easy to read information pages.
- Generator/load current monitoring & protection.
- Provides convenience of monitoring and protection of the generator or monitoring of the load current.
- Configurable analogue/digital inputs.
- Provides multiple installation options.
- Configurable DC, volt-free and staged loading outputs.
- Provides full generator load control.
- CAN, MPU & alternator speed sensing (selectable depending on engine type).
- Makes the module ideal for standard and electronic engine applications.
- Tier 4 CAN engine support.
- Ensures the control module can be used with the latest in modern electronic engine technology.
- Configurable event log (50).
- Provides access to historical alarms and operational status.
- DSE Configuration Suite PC Software.
- Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
- Fuel and start outputs (configurable on CAN).
- Provides multiple installation options.
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained
during cranking.
MAXIMUM OPERATING CURRENT
100 mA at 12 V, 105 mA at 24 V
MAXIMUM STANDBY CURRENT
60 mA at 12 V, 55 mA at 24 V
MAXIMUM SLEEP CURRENT
40 mA at 12 V, 35 mA at 24 V
GENERATOR & MAINS (UTILITY)
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz
INPUTS
DIGITAL INPUTS A to F
Negative switching
ANALOGUE INPUTS A to C
Configurable as:
Negative switching digital input
0 Ω to 480 Ω
ANALOGUE INPUT D
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 480 Ω
OUTPUTS
OUTPUT A (FUEL)
10 A short term, 5 A continuous,
at supply voltage
OUTPUT B (START)
10 A short term, 5 A continuous,
at supply voltage
AUXILIARY OUTPUTS C, D, E & F
2 A DC at supply voltage
