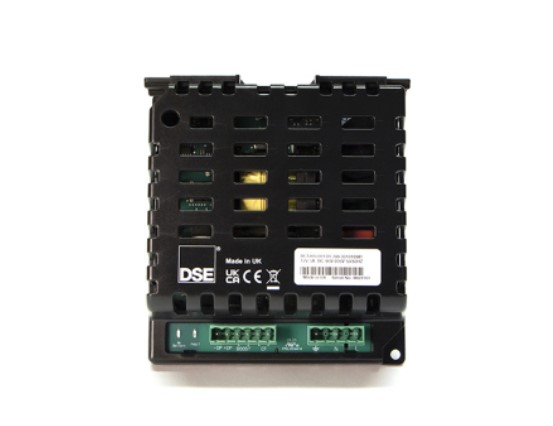

Deep Sea Electronics DSE BC2405 24 volt 5 Amp Battery Charger For Sale
DSEBC2405
The DSE9701 has been replaced by the DSE BC2405 battery charger.
VERTICAL MOUNT
50 mm x 129.6 mm x 138.5 mm 2.0” x 5.1” x 5.45”)
HORIZONTAL MOUNT
129.6 mm x 138.5 mm x 50 mm (5.1” x 5.45” x 2.0”)
WEIGHT
0.3kg
PRODUCT VARIANTS
BC2405-01 – 24 Volt 5 Amp Battery Charger
FEATURES
• Wide AC input voltage
• Manual boost adjustment
• Constant current
• Constant voltage
• Automatic float mode return
• Low output ripple to suit all
battery types
• Reverse polarity protection, short
circuit protection and current
limiting
• Auto recovery on fault condition
removal
• Battery charger thermal de-rate
facility
• Cell charge boost & equalizing
• Chargers switch to eco power
mode when batteries are fully
charged
• Multiple modules can be linked
together to increase current
output
• Battery voltage measurement
BENEFITS
• Small and compact size
• Suitable for a wide range of
battery types
• No moving parts for longer
battery charger life
• Switched mode design
• Charge fail output
• Minimum 80% operating
efficiency
• Flexible mounting options
• Position of serial label allows for
simple charger identification
when fitted inside a panel.
• Can be used as a power supply.
Specifications
AC SUPPLY
FREQUENCY RANGE
45 Hz to 65 Hz
VOLTAGE RANGE
90 V to 305 V (L-N)
DC OUTPUT
DSEBC1205 OUTPUT
5 A DC 12 V DC
DSEBC2405 OUTPUT
5 A DC 24 V DC
RIPPLE AND NOISE
<3% Vo
EFFICIENCY
>80%
REGULATION
LINE
<1%
LOAD
<4% Vo
PROTECTIONS
Short Circuit
Reverse Polarity
DIMENSIONS
Horizontal (W x H x D)
129.6 mm x 138.5mm x 50 mm
5.1” x 5.45” x 2.0”
Vertical DIN Mounted (W x H x D)
50 mm x 129.6 mm x 138.5mm
2.0” x 5.1” x 5.45”
Vertical Clip Mounted (W x H x D)
50 mm x 140.8 mm x 138.5mm
2.0” x 5.55” x 5.45”
WEIGHT
0.4 kg
OPERATING TEMPERATURE RANGE
-25 °C to +80 °C (with de-rating)
-13 °F to +176 °F
STORAGE TEMPERATURE RANGE
-40 ºC to +85 ºC
-40 °F to +185 °F
